Underground Cable Locator

Underground Cable Locator

Regular price $44.80 USD
Regular price $49.99 USD Sale price $44.80 USD
Sale Free Knowledge
View on Amazon


Color: Yellow


  • 📏【Time and Money Saver】Helpful-Locating & tracking buried and hidden wires.No more calls,no more cost, find and fix it by yourself.

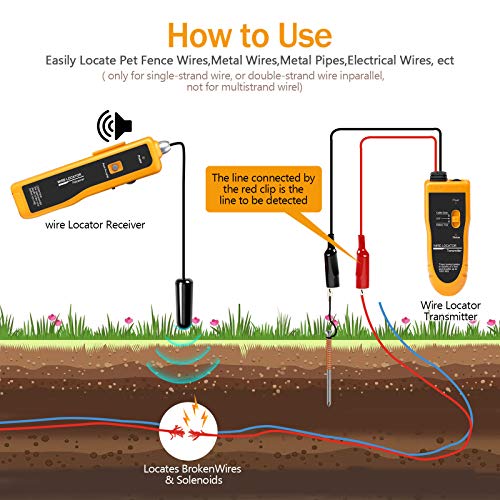

  • 📏【How to Use】Easily Locate Pet Fence Wires, Metal Wires, Metal Pipes, Electrical Wires, ect ( only for single-strand wire, or double-strand wire in parallel, not for multistrand wire!!!)
  • 📏【Where You Can Locate】Locate-Determining Which Receptacles are on specific circuits,track-Pinpointing Drill Sites before drilling.

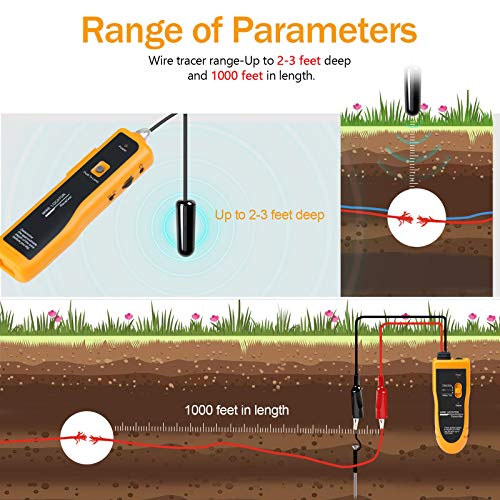

  • 📏【Range of Parameters】Wire tracer range-Up to 2-3 feet deep and 1000 feet in length.
  • 📏【Earphone & Tips】Get a free Earphone with package. Tips: Do not use on live circuits to avoid damaging the Tester!This device is mainly to locate non-energized Cable, or low-voltage situation less than 24V.

model number: F02

Part Number: KTL25

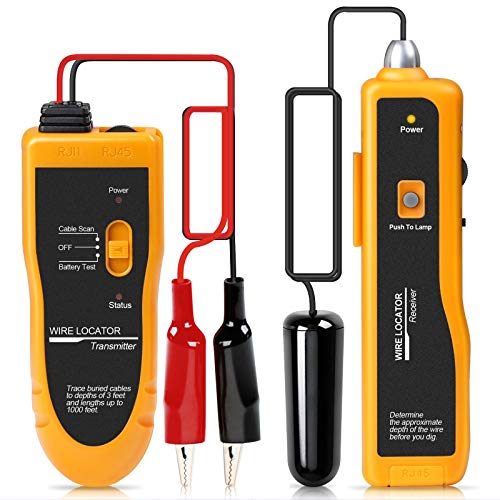

Details: KOLSOL F02 Underground Cable Wire Locator Tracker Lan With Earphone

Item Specifics:
Brand Name: Kolsol
Model Number: F02
Place of Origin: Shenzhen.China
Tracing type: Underground, Buried wires and Other Hidden wires
Length range:up to 1000 feet
Depth range: up to 3 feet
Power: 9V Alkaline battery
Certificates: CE

Technical indexes:

Underground Wire Locator F02 Transmitter specifications:

Tone frequency:200kHz
The Max length distance:1000 feet
The Max depth distance :3 feet
The Max. working current:Less than 70mA
Tone mode:1 Tone
Max. signal voltage:15Vp-p
Signal display:Signal tone, Antenna
Voltage protection:AC 60V/DC 42V
Battery type:DC9.0V(NEDA 1604/6F22) x 1pc
Dimensions (LxWxD):49 x 135 x 33mm

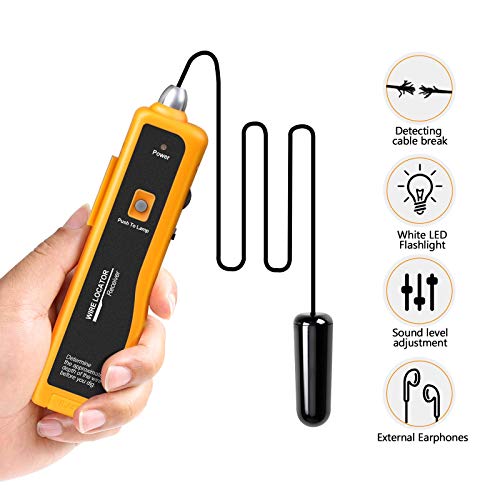

Underground Cable Locator F02 Receiver specifications:

The Max. working current:Less than 70mA
Earphone jack:1
Battery type:DC9.0V(NEDA 1604/6F22) x 1pc
Dimensions (LxWxD):43 x 168 x 27mm

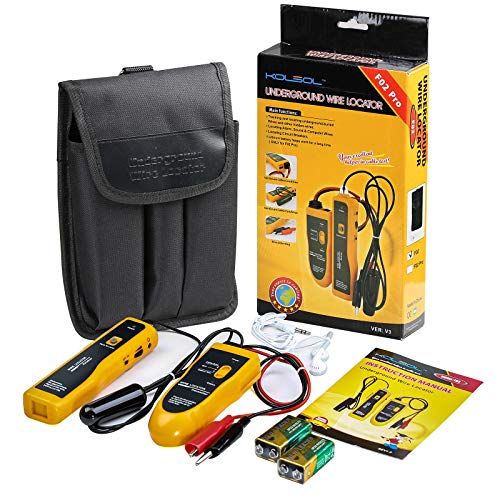

1 x Emitter
1 X Receiver
1 x Earphone
1 x Kit bag
1 x Instruction Manual

EAN: 0889327006175

Package Dimensions: 11.4 x 5.9 x 1.9 inches
